Tray Type Food Elevator

Food Elevator

Electric Food Lift

Single Track/Double Track

Lifting Height

2-8m

Load Capacity

50kg/75kg

Request a Quote Brochure

Tray Type Food Elevator

Features

Parameters

Request a Quote

Brochure

Features

+ Expand All - Collapse All

Open Tray Design

+ -

Easy access for loading and unloading food, dishes, and kitchen items.

Space-Saving Structure

+ -

Compact design suitable for restaurants and kitchens with limited space.

Stable Vertical Transportation

+ -

Ensures smooth lifting between floors with low noise operation.

Food-Grade Stainless Steel Option

+ -

Easy to clean and suitable for hygienic food service applications.

Custom Solutions Available

+ -

Adjustable lifting height, tray size, and control methods according to customer needs.

Parameters

Brochure

Electric Food Lift

Single Track/Double Track

Lifting Height

2-8m

Load Capacity

50kg/75kg

Speed

Various speed, can be adjusted

Control

Control panel

Hole size

Based on pallet size,【lift and right】+100mm, 【front and back 】+200mm

Packing

Wooden case (especially for export)

Note

Ultra-quiet, variable frequency motor

Lifting Height	Track Length	Lifting Capacity	Stop Quantity	Pallet Size	Pallet Material
2m	3m	50kg/75kg	2 stops	604030cm	304 stainless
3m	4m	50kg/75kg	2 stops	604030cm	304 stainless
4m	5m	50kg/75kg	2 stops	604030cm	304 stainless
5m	6m	50kg/75kg	2 stops	604030cm	304 stainless
6m	7m	50kg/75kg	2 stops	604030cm	304 stainless
7m	8m	50kg/75kg	2 stops	604030cm	304 stainless
8m	9m	50kg/75kg	2 stops	604030cm	304 stainless

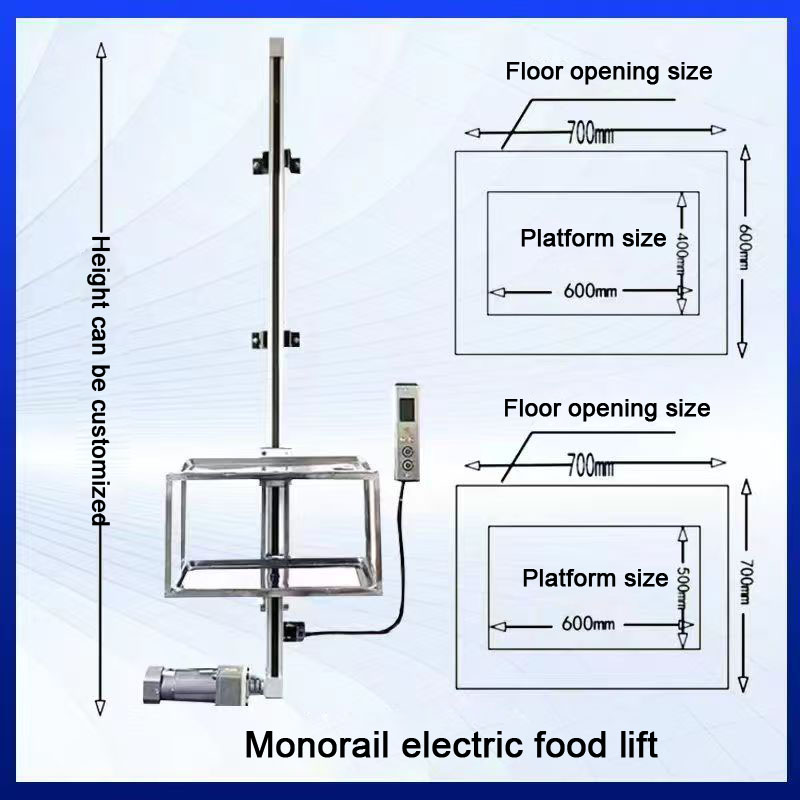

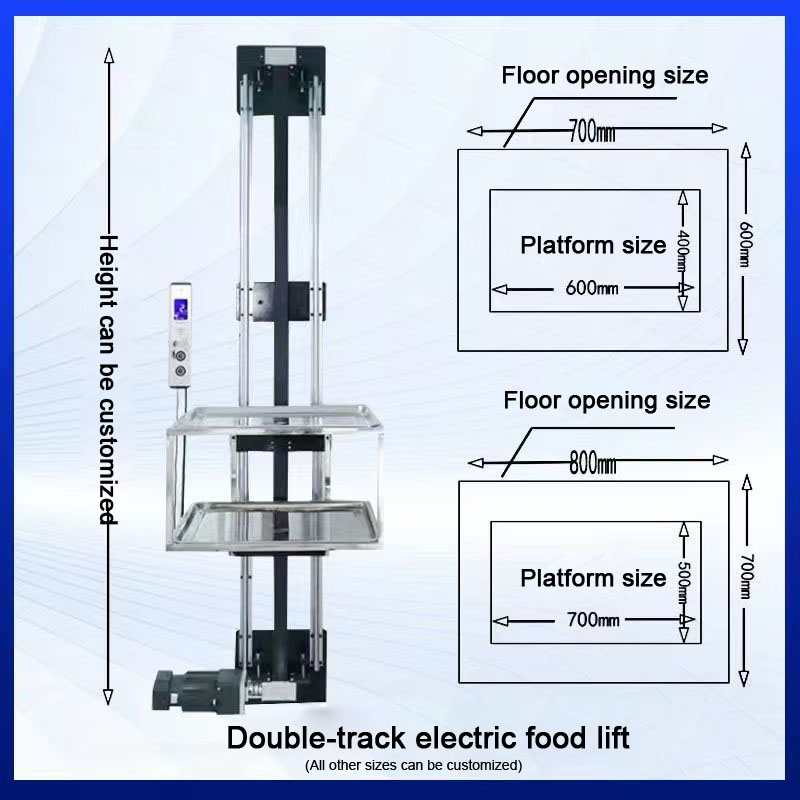

Monorail electric food lift Double-track electric food lift

Product Introduction

Tray-Type Food Elevator for Restaurants, Hotels and Commercial Kitchens

The tray-type food elevator is a compact and efficient vertical lifting solution designed for transporting meals, dishes, beverages, and kitchen supplies between different floors. With an open tray platform design, it allows quick loading and unloading, making it ideal for restaurants, hotels, bars, villas, and commercial kitchens.

Made of durable materials with a stainless steel tray structure, this dumbwaiter provides smooth, safe, and reliable operation in busy food service environments. It helps reduce manual handling, improve service efficiency, and maintain hygienic food transportation.

STONIMAGE tray-type food elevators can be customized according to lifting height, load capacity, platform size, and installation requirements.

Quality You Can Trust

Reliable performance starts with reliable manufacturing. From raw material inspection to final testing, every food dumbwaiter undergoes strict quality control to ensure stable operation and long service life.

Our manufacturing system is backed by:

CE Certification
TÜV Testing
ISO 9001 Quality Management
EC REP Compliance Support

These certifications help ensure our products are suitable for restaurants, hotels, villas, hospitals, and commercial buildings worldwide.

STONIMAGE Certificate

FAQ

+ Expand All - Collapse All

What is a tray-type food elevator used for?

+ -

A tray-type food elevator is mainly used to transport food, dishes, drinks, and kitchen supplies vertically between floors, helping restaurants and hotels improve service efficiency.

What is the lifting capacity of the tray food elevator?

+ -

STONIMAGE tray-type food elevators are available with different capacities, commonly 50kg, 75kg, 80kg depending on customer requirements.

Can the tray size be customized?

+ -

Yes. We can customize tray dimensions, lifting height, door design, and installation structure according to your building layout.

Is the tray food elevator suitable for restaurants?

+ -

Yes. It is widely used in restaurants, hotels, cafés, and commercial kitchens for transporting meals and kitchen supplies.

Does it require a shaft?

+ -

Yes. Installation usually requires a vertical shaft or enclosed space. Our engineers can provide installation suggestions based on your site conditions.
